How does the signal compose?¶

Structure answered which concepts the model relies on. Composition answers how those concepts work together — which pairs interact, and how does the average prediction physically flow from raw column to decision.

When to use this¶

After identifying the top-ranked concepts in Structure, to check whether any pair has a strong non-additive interaction.
When preparing the model-report figure that shows the signal flow end-to-end — the Sankey is the most non-technical-friendly chart in the library.
When debugging an interaction-heavy model where per-feature SHAP is misleading because pairs of features cancel out at the leaf level but the pair-as-a-concept does not.

The two views¶

Function	Returns	Use for
`concept_interaction_matrix` + `concept_interaction_heatmap`	Concept × concept SHAP interaction matrix	"Do these two concepts have a non-additive signal?"
`concept_shap_sankey`	Three-column Sankey	"Where does the signal flow?"

The interaction matrix needs a (N, F, F) SHAP interaction tensor — expensive. The Sankey needs only (N, F) standard SHAP.

Minimal example¶

from concept_graph_xai import (
    concept_interaction_heatmap, concept_interaction_matrix,
    concept_shap_sankey,
)

# Concept × concept interactions (needs interaction tensor)
inter = concept_interaction_matrix(graph, feature_names,
                                   shap_interaction_values)
concept_interaction_heatmap(inter).show()

# Feature → concept → ±outcome flow (needs standard SHAP)
concept_shap_sankey(graph, feature_names, shap_values).show()

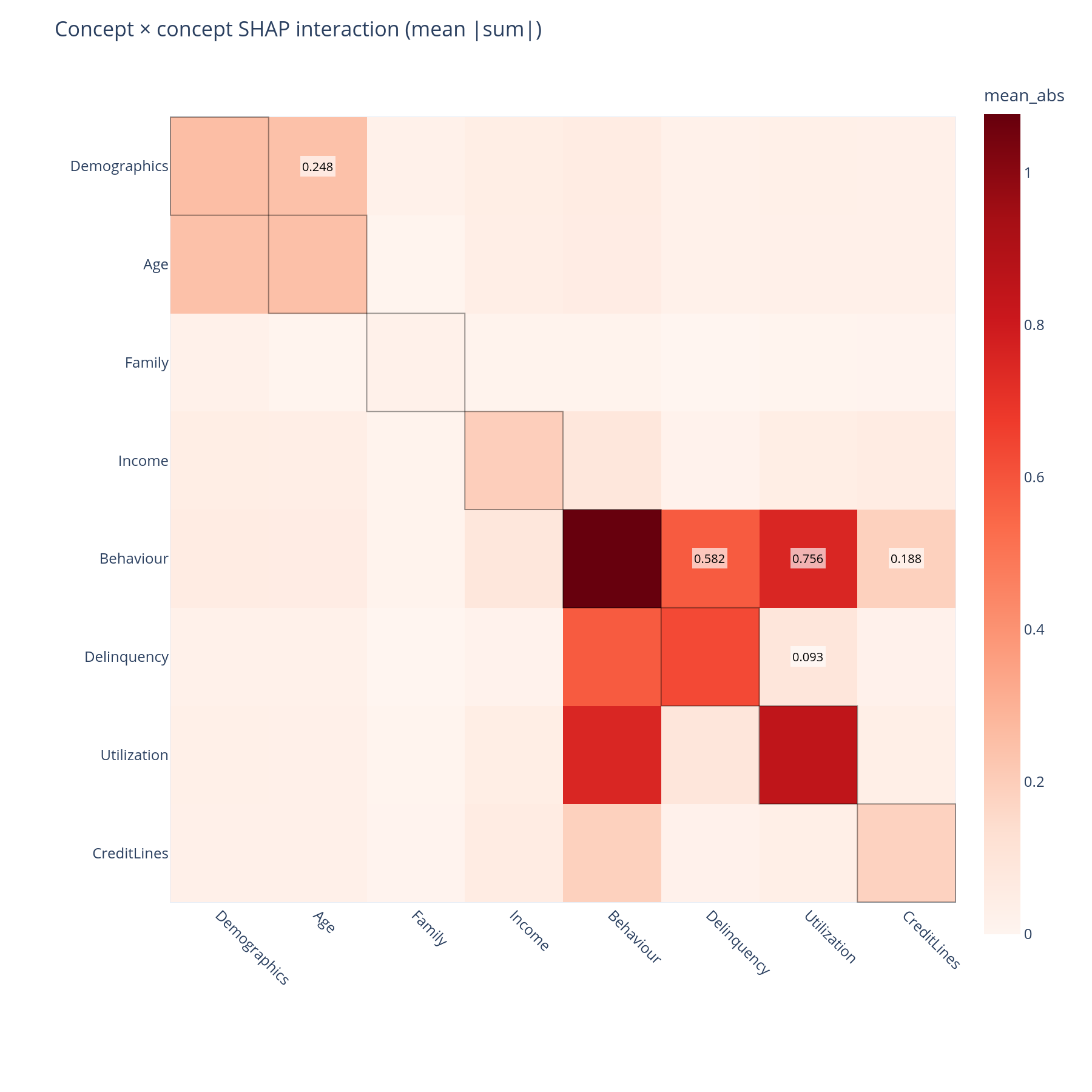

Concept × concept interaction matrix

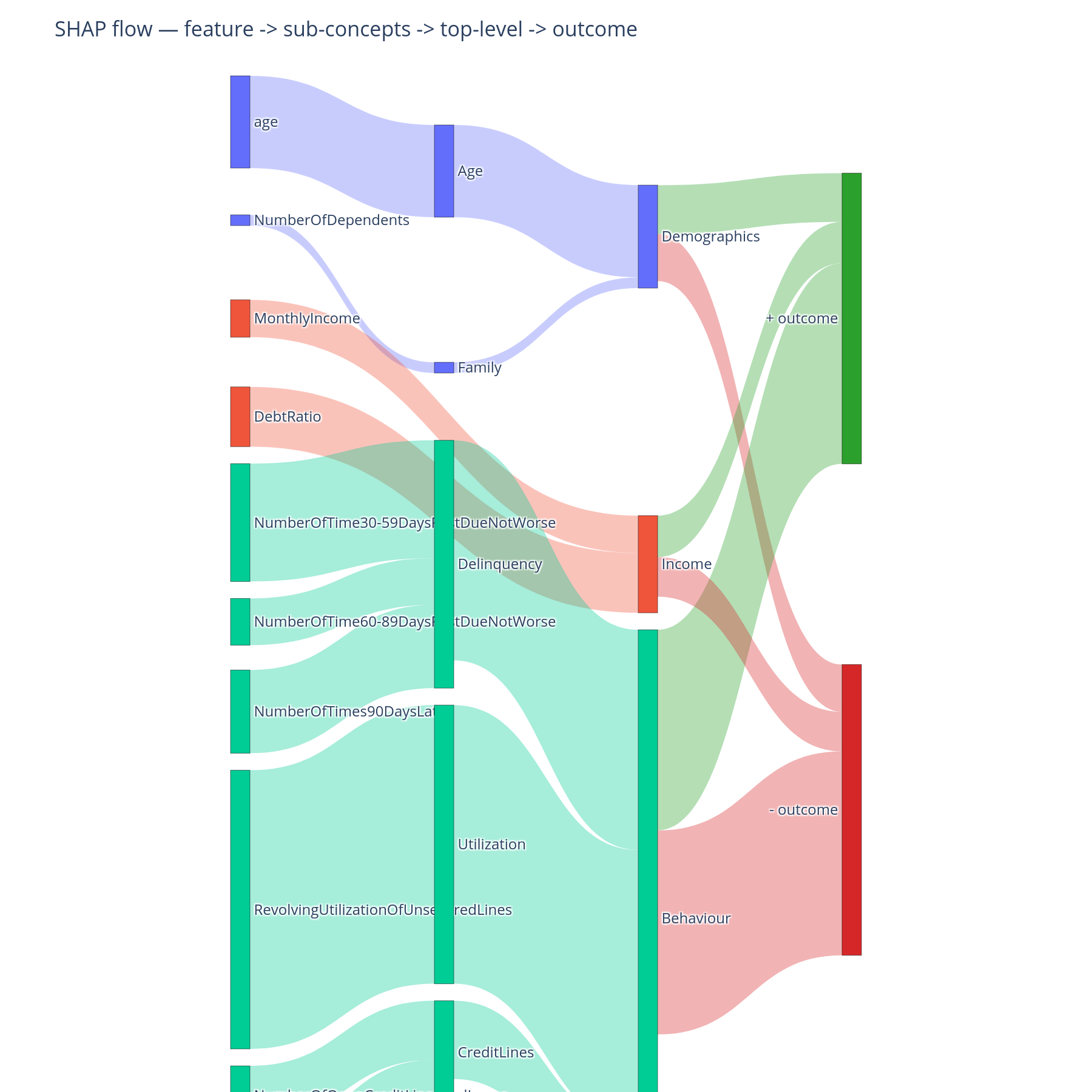

Feature → concept → ±outcome Sankey

Reading the output¶

Interaction matrix¶

Cells aggregate per-sample SHAP interaction values up the tree:

Diagonal cells = within-concept self-interaction. Non-zero means the concept's features interact with each other.
Off-diagonal cells = between-concept interaction. Both halves are drawn (the matrix is symmetric) so the visual is unambiguous.

A large off-diagonal cell — Income × Behaviour, say — means a univariate "what does Income contribute" answer is incomplete; the contribution depends on behavioural context. That belongs in the model report next to the importance ranking.

A large diagonal cell with a small off-diagonal cell means the concept is internally non-linear but does not cross-react with other concepts — which is exactly what the tree was set up to find.

SHAP Sankey¶

Three columns. Left: features. Middle: concepts, ordered top-to-bottom in DFS preorder so siblings sit together. Right: the ±outcome bucket.

Link width = summed magnitude of SHAP contribution along that edge.
Link colour = inherits the top-level branch hue, so a single branch's flow is visually one stream from feature to outcome.
Features and concepts that push the prediction up terminate at +outcome; those that push it down terminate at -outcome.
Concepts are placed at explicit (x, y) coordinates so vertical order is deterministic (not the Plotly auto-arrange, which would re-order to minimise crossings).

What to do with the answer¶

Pull the top-3 off-diagonal interaction cells into the model report under "non-additive effects".
Use the Sankey as the one figure in a non-technical deck — it shows the whole pipeline in one frame.
Cross-check with per-prediction explanations: a concept with a large off-diagonal interaction will show a wide concept_violin and a context-dependent waterfall.

Common pitfalls¶

SHAP interaction values are expensive. shap.TreeExplainer computes them in O(F²) per sample. For 150k rows × 50 features this is minutes; for 1M × 200, this is hours. Sub-sample (N=2000 is usually enough for the matrix to stabilise) or use shap.utils.sample to build a representative subset.
Sankey "shows only the feature and top concept". This was a v0.5 bug — the walker did not fully traverse multi-level hierarchies. Fixed in v0.5.1; if you are still on v0.5.0 upgrade before relying on the chart.
Per-row Sankey misleads. concept_shap_sankey aggregates over all rows. For a single-row Sankey, use concept_waterfall instead — it answers the same question for one prediction.

Per-prediction — the same composition at the row level, where row-specific interactions become visible.
Tour, Part C — the same answers in narrative form.
