Visualize

Shared objects

Snippets on this page continue from the objects the quickstart builds with credit_demo(): exp, x, target, X_bg, the solved res and batch, and cal, a fitted monotone calibrator (see the FAQ).

Every plot function in one place, grouped by the question it answers. All of them live in treecf.viz and treecf.viz_batch (extra: treecf[viz]), take an optional ax/axes, and return the matplotlib axes for further styling. Categorical features are drawn with their display names whenever categories= named them.

One plan

What changed, and what it does to the score:

from treecf.viz import plot_changes, plot_effort, plot_waterfall

plot_changes(res)                      # the changes, largest first
plot_waterfall(exp, res, target=target)  # per-change score contribution
plot_effort(exp, res)                  # cost per change, in sigma units

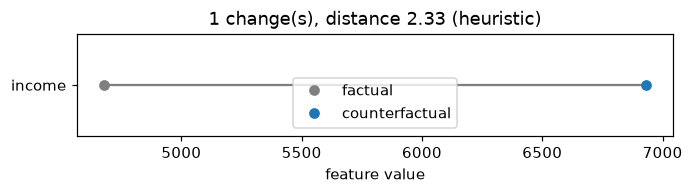

Horizontal bars of the plan's feature changes, largest first

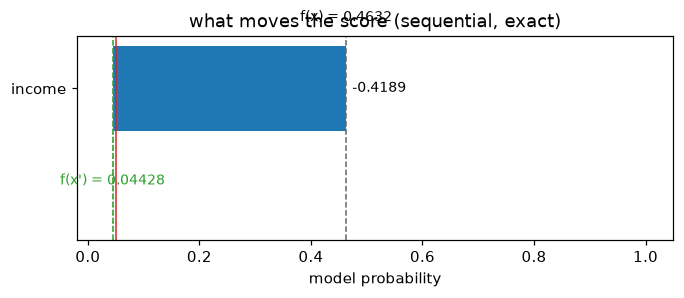

Waterfall of each change's contribution to the raw score, factual to counterfactual

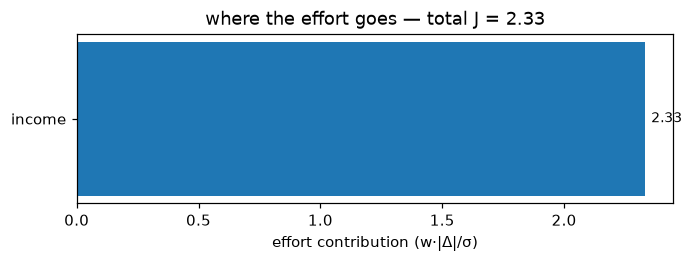

Per-change effort bars in sigma units, one bar per changed feature

Alternatives and ladders

Several plans for the same row, side by side:

from treecf import Target
from treecf.viz import plot_alternatives, plot_ladder, plot_recourse_map, plot_tradeoff

plans = exp.explain_coalitions(
    x, target=target,
    coalitions={"repayment": ["utilization", "dpd_12m"], "income": ["income"]},
    include_full=True, seed=0,
)
plot_alternatives(plans, explainer=exp)   # per-plan changes, one color per plan
plot_tradeoff(plans, target=target)       # what each plan costs and buys
plot_recourse_map(exp, x, plans, target=target)   # model output vs. cost

ladder = exp.explain(x, target=Target.bands({"A": (0.0, 0.01), "B": (0.01, 0.05)}), seed=0)
plot_ladder(ladder)                       # one bar per grade band

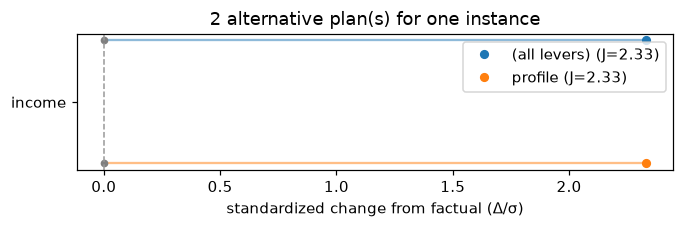

Grouped bars comparing each plan's feature changes, one color per plan

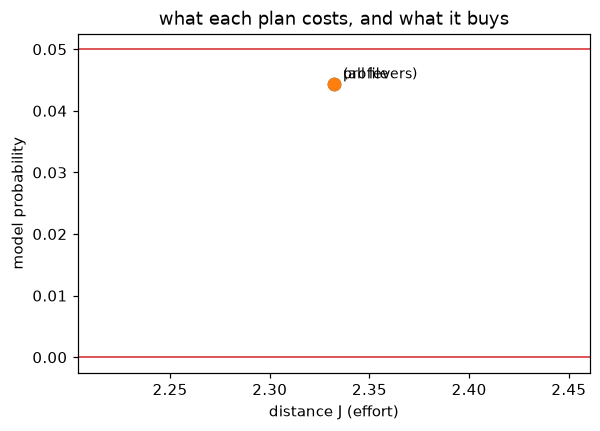

Scatter of plan cost against achieved score, one point per plan

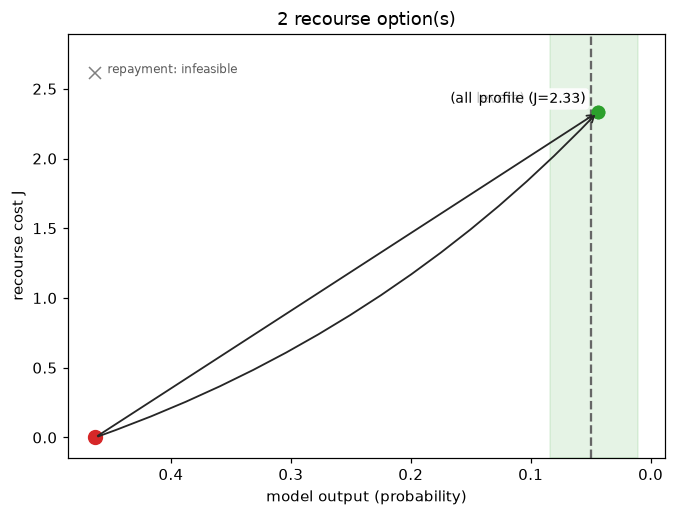

Model output versus plan cost, plans annotated with their changes

One bar per grade band showing which grades are reachable and at what cost

plot_recourse_map(..., schematic=True) drops the numbers for a presentation-ready sketch of the same geometry:

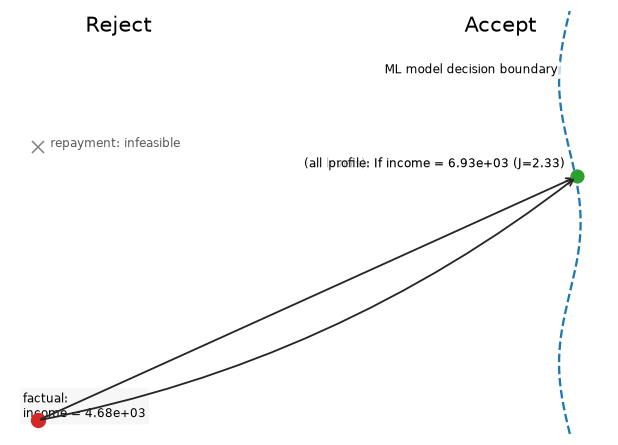

Schematic recourse map without numeric axes, reject and accept regions labeled

A certified region

The certified box from region=True — per-feature intervals, category tiles for categorical features, and a marker for what stopped each bound: the model, a constraint, or — for a region grown with region_mode="maximal" — a proved boundary (a filled square). The legend's "certified, not necessarily maximal" line appears only while some side is neither at a bound nor proved (prove the boundary):

from treecf.viz import plot_region

certified = exp.explain(x, target=target, backend="exact", region=True, seed=0)
plot_region(exp, x, certified)

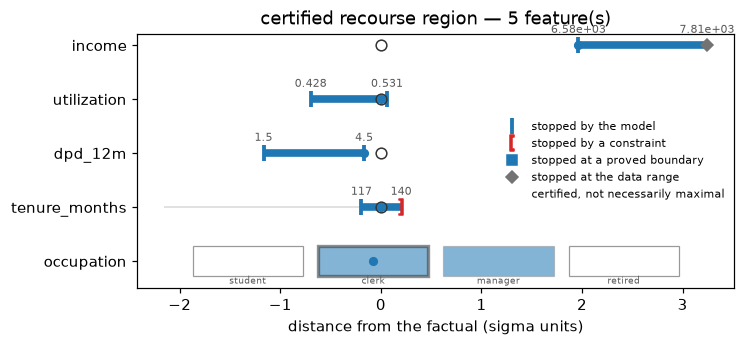

Certified region per feature: intervals in sigma units with caps marking whether the model or a constraint stopped each bound, and category tiles for the categorical feature

A whole campaign

Reading thousands of rows at a glance:

from treecf.viz_batch import (
    plot_batch_deltas, plot_batch_levers, plot_batch_matrix, plot_batch_summary,
)

plot_batch_summary(batch)          # feasibility, cost, and sparsity overview
plot_batch_levers(batch)           # which features do the work, campaign-wide
plot_batch_matrix(batch, explainer=exp)   # rows × features, who changes what
plot_batch_deltas(batch, explainer=exp)   # the distribution of each lever's moves

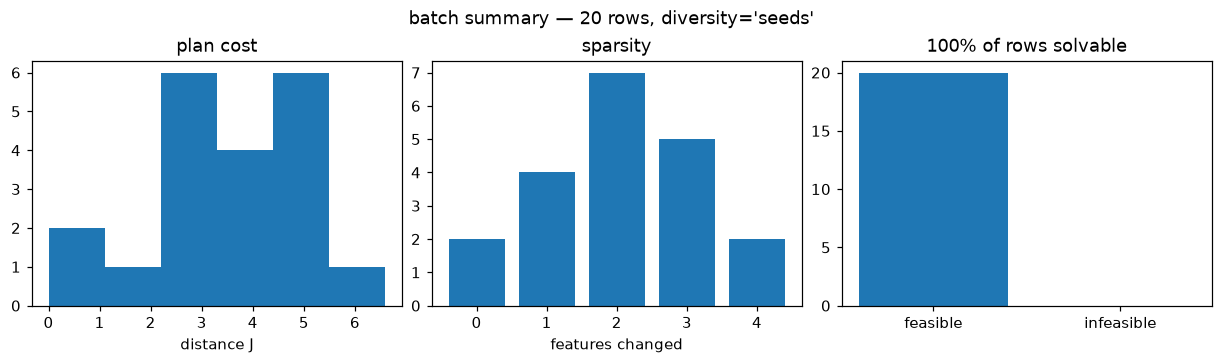

Batch overview panels: feasibility rate, cost distribution, and changes per plan

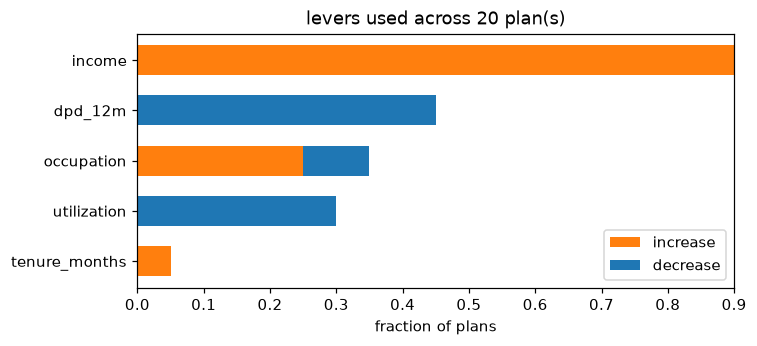

Campaign-wide lever usage: how often each feature does the work

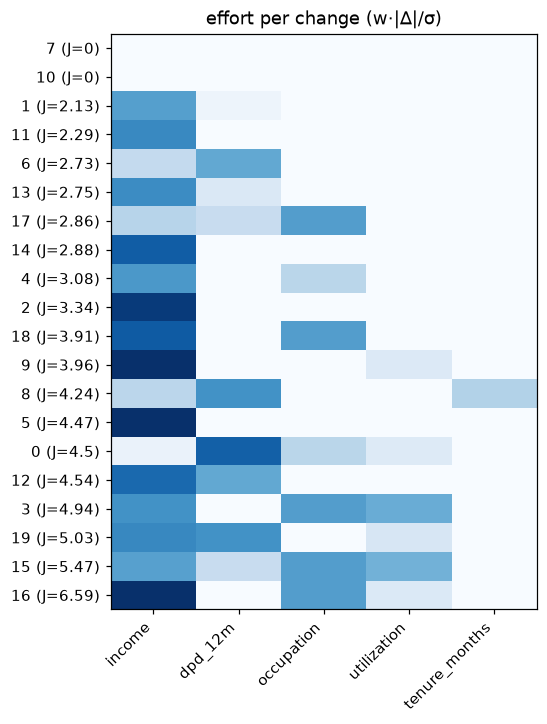

Rows-by-features matrix showing which feature each row's plan changes

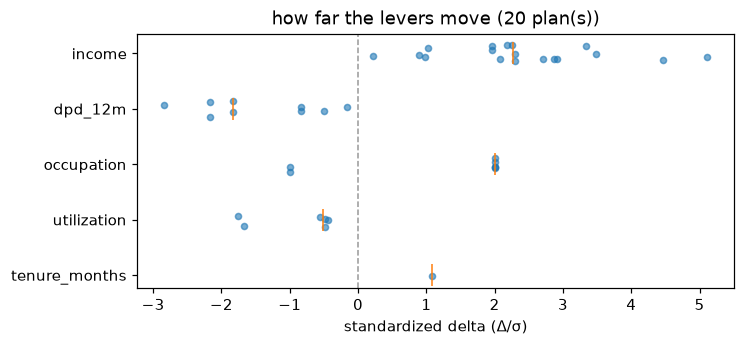

Distribution of each lever's moves across the batch

Recourse burden by segment

Who pays how much for recourse, and for whom none exists — groups is any per-row labeling (a segment column, a protected attribute, a portfolio):

from treecf.viz_batch import plot_recourse_burden, recourse_burden_table

groups = ["thin-file" if row[3] < 24 else "established" for row in X_bg[:20]]
rows = recourse_burden_table(batch, groups, min_group_size=5)
plot_recourse_burden(batch, groups, min_group_size=5)

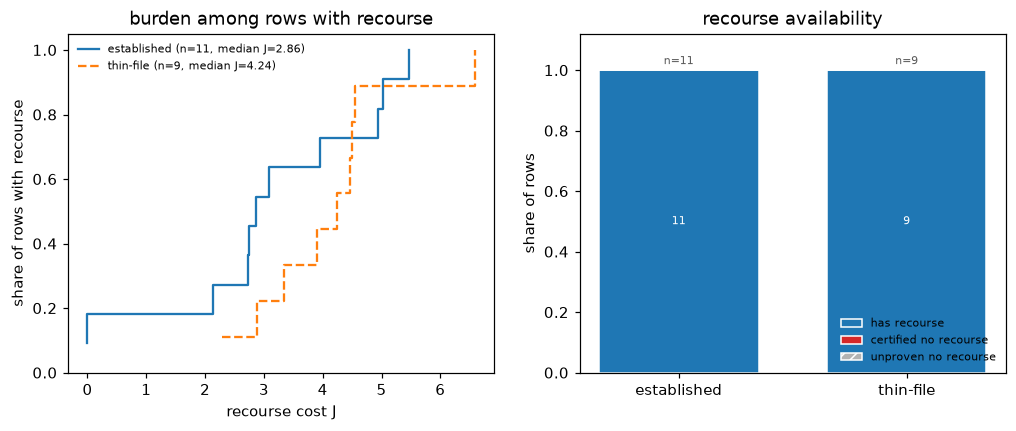

Two panels per segment: the share of rows with any feasible plan, and the cost distribution of the feasible plans

The table reports, per group, the feasible share and the cost distribution of the feasible plans; the plot draws both panels. A group's low median cost means nothing without its feasibility rate alongside — the table keeps them together deliberately.

A recourse menu

plot_recourse_menu draws every lever set a recourse_menu solved as one row of a matrix: a filled cell where the plan changed that lever (shaded by the size of the change), the plan cost on the row label, and a glyph for the proof the row carries — a filled square for an optimal plan, a cross for a set certified unable to reach the target:

from treecf.viz import plot_recourse_map, plot_recourse_menu

menu = exp.recourse_menu(x, target=target, max_levers=2, backend="exact", seed=0)
plot_recourse_menu(menu, explainer=exp)
plot_recourse_map(exp, x, menu, target=target)   # the same menu, as a recourse map

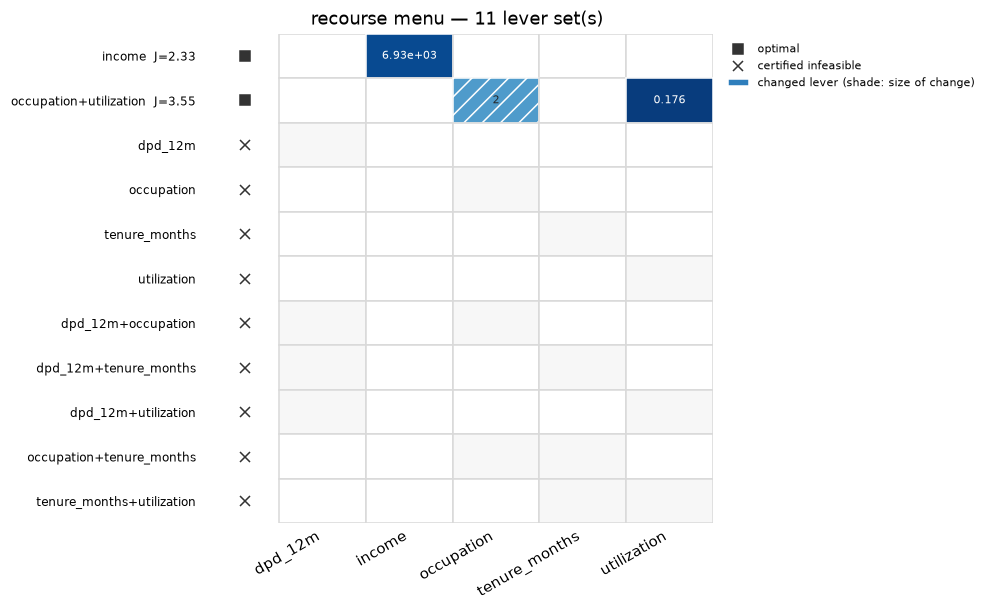

Lever-set by feature matrix: two feasible rows with filled cells and their costs, and nine rows marked with a cross as certified infeasible

A menu is a mapping in the same shape explain_coalitions returns, so the recourse map takes it unchanged — every feasible set becomes one point and every certified-infeasible set one grey cross:

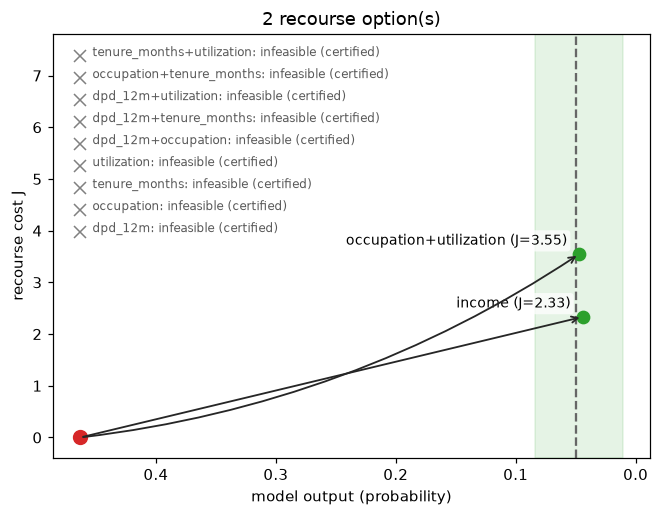

The same menu on the recourse map: two plans as points against the target band, the certified-infeasible sets listed as grey crosses

Where the menu comes from, and what complete certifies: Run the search.

Comparing multiple counterfactuals

plot_counterfactuals overlays any list of plans for one factual:

from treecf.viz import plot_counterfactuals

second = exp.explain(x, target=target, seed=1)
plot_counterfactuals([res, second])

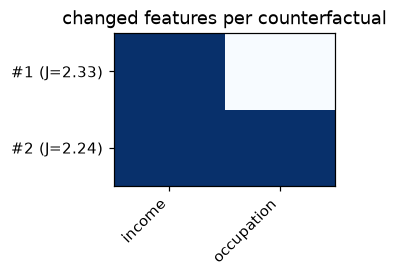

Overlay of two plans for one factual, aligned by feature
