Visualization

Data these snippets assume

Blocks on this page use a fixed set of names for held-out data instead of re-deriving it each time. To run them, define the names first:

# docs: no-run — the definitions the snippets on this page assume
import numpy as np
from probcal import BetaCalibrator, Masterscale, make_pd_portfolio
from probcal.monitor import CalibrationMonitor

cal_set, new_set = make_pd_portfolio(n=3000, random_state=0), make_pd_portfolio(n=1000, random_state=1)
s_cal, y_cal = cal_set.scores, cal_set.y          # held-out calibration scores and outcomes
w_cal = np.ones_like(y_cal)                       # uniform sample weights
s_new = new_set.scores                            # scores of new obligors
ms = Masterscale.from_edges([0.01, 0.05], names=["G1", "G2", "G3"])   # the masterscale
p_cal = BetaCalibrator().fit(s_cal, y_cal).predict_proba(s_cal)         # calibrated PDs
grades = ms.assign(p_cal)                                              # rating labels
segments = np.array(["seg-a", "seg-b", "seg-c"])[np.arange(len(s_cal)) % 3]  # segment labels
model = ...   # any object with predict_proba(X); the docs use a stub that reads X[:, 0]
mon = CalibrationMonitor(alpha=0.05)              # with a few batches of a calibrated forecast applied

Every block also names, in its first comment line, which of these it uses.

Every calibration claim in this package has a picture, and the pictures are built in two layers: probcal.curves computes plotting-ready dataclasses with numpy alone, and probcal.plots renders them when matplotlib (the [viz] extra) is installed. The separation means every curve is available to any backend, or to no backend at all in a batch report, and the rendering layer adds convention, not computation.

Reliability constructions

The reliability diagram plots estimated event rate against predicted probability; a calibrated model traces the diagonal. probcal builds it four ways, because the construction is the estimator and inherits its trade-offs. reliability_binned groups predictions (equal-mass by default), plotting each bin's mean prediction against its event rate with a Wilson confidence interval, the binomial interval that behaves sensibly at the small counts and extreme rates a PD portfolio produces. Data density is shown by the per-class rug along the axis edges (a count-bar margin remains available via counts=True), so sparse regions announce themselves. reliability_loess and reliability_spline draw the smooth versions in the tradition of Austin and Steyerberg (2014), trading the binning artifacts for a bandwidth choice; plotted together with the binned points they distinguish real curvature from bin noise. Every curve object carries both probability-scale and logit-scale coordinate arrays, so the choice of scale is made at plot time, not at computation time.

reliability_smooth (KernelReliabilityCurve) is the fourth construction, and the only one whose bandwidth is not a free choice: it reuses metrics.smooth_ece's fixed-point bandwidth sigma_star, with the same equal-width logit lattice and the same truncated Gaussian kernel, so curve.smooth_ece reproduces the metric exactly rather than merely tracking it, and the diagram and the number it is read against always agree. Because sigma_star is tuned for the smECE aggregate rather than for a low-variance curve, the pointwise estimate is noisier than reliability_loess's wide, fraction-of-data bandwidth and needs a larger sample before it settles; its confidence ribbon (a seeded bootstrap of (y, p, sample_weight) triples, n_boot=0 to disable) is computed at that one fixed sigma_star, so it reads as uncertainty in the rate given the bandwidth, not uncertainty in the bandwidth choice itself.

Why the logit scale is the flagship

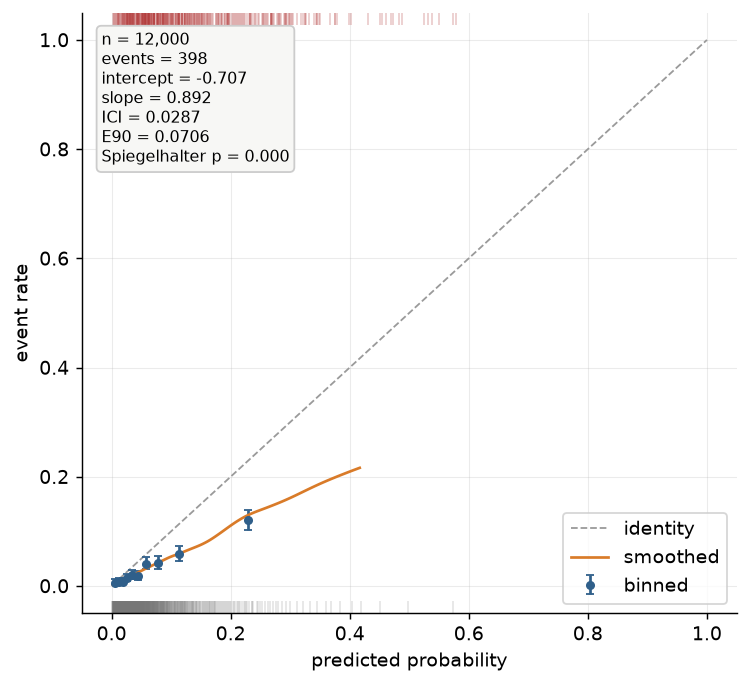

On a low-PD portfolio, the probability-scale reliability diagram is a picture of almost nothing: the entire book lives between 0 and 0.1, the region a linear axis compresses into its left margin.

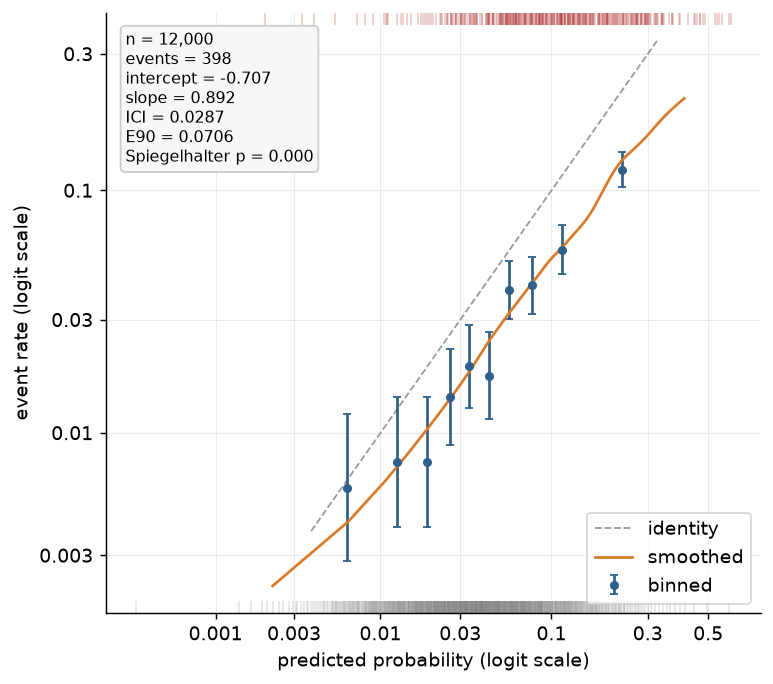

The same data on the logit scale, where the miscalibration becomes readable:

Plotting on the logit scale stretches exactly where the decisions are. The difference between 0.5% and 1% PD is a factor of two in price and a full grade on a masterscale, and it is invisible on \( [0,1] \) but a fixed distance in log-odds. plot_reliability(scale="logit") is therefore the package's default recommendation for credit work, with axis ticks labeled in probabilities at logit positions, so the reader keeps probability intuition while the geometry keeps resolution. Parametric calibrators are straight lines on this scale (slope and intercept readable by eye), the offset is a vertical translation, and tail miscalibration, the kind that costs money at the approval cutoff, stops hiding in the corner.

The annotated reliability diagram

Passing the raw y/p to plot_reliability upgrades the diagram in the rms::val.prob tradition: the picture carries its own numbers. The stats box, computed by probcal.metrics.reliability_summary and never inside the plotting layer, reports the sample size and event count, the calibration intercept and slope (level and spread of the miscalibration in log-odds), ICI and E90 (typical and near-worst absolute distance to the smoothed curve, in probability units), and Spiegelhalter's p-value (the classical unbiasedness test). One glance answers the three questions a validator asks of a reliability diagram: how much data, how wrong, and is it statistically distinguishable from calibrated. The rug along the axis edges marks events (top) and non-events (bottom), deterministically thinned to at most 1000 marks per class (sorted, evenly strided, no RNG anywhere in plotting), so two renders of the same data are always identical. All probcal plots style themselves through a per-call rc_context; your global matplotlib configuration is never touched.

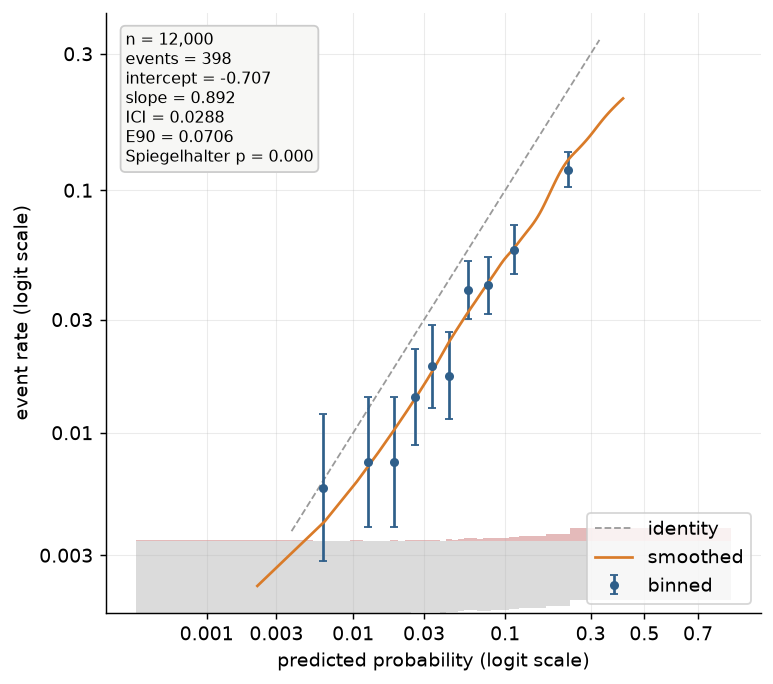

risk_dist picks the style of that density layer: "rug" (the default, described above), "split" (a 30-equal-mass-bin spike histogram of p, events upward and non-events downward, from a shared y = 0.12 baseline in axis-fraction coordinates, since axis coordinates cannot go negative; heights are scaled so whichever class peaks higher reaches the full 0.12), or None for no density layer at all. rug=False turns the layer off regardless of risk_dist, equivalently to risk_dist=None.

risk_dist="split" in place of the default rug:

stats swaps in an alternative box in place of the annotate one above: stats=True reports n, events, intercept, slope, ICI, smECE, Brier (smECE and Brier are strictly proper / self-consistent scores that E90 and Spiegelhalter's test do not cover); passing a MetricReport (e.g. from metrics.evaluate) instead reports name = value [ci_low, ci_high] for whichever of intercept, slope, ici, smooth_ece, brier the report carries, plus n/events read off y. annotate is ignored whenever stats is truthy, so the two boxes never stack.

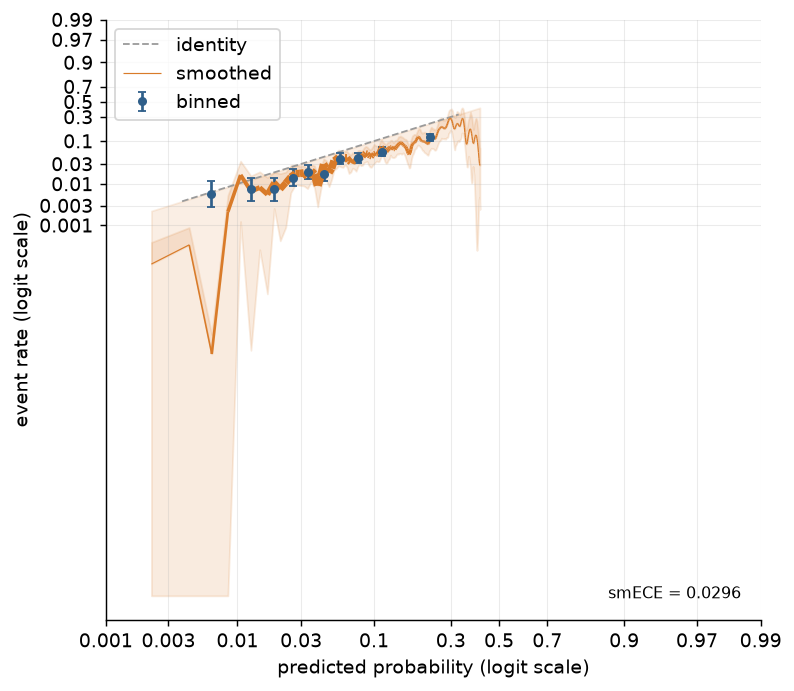

Passing a KernelReliabilityCurve (from reliability_smooth) as smooth renders it as a density-weighted curve rather than a plain line: a variable-width LineCollection (wide where predictions are dense, linewidths = 0.5 + 4.0 * density / density.max()), the miscalibration area shaded between the curve and the identity, its bootstrap ribbon, and an smECE = ... readout in the bottom-right corner, the same convention that fills the fourth reliability construction described above.

The calibration belt

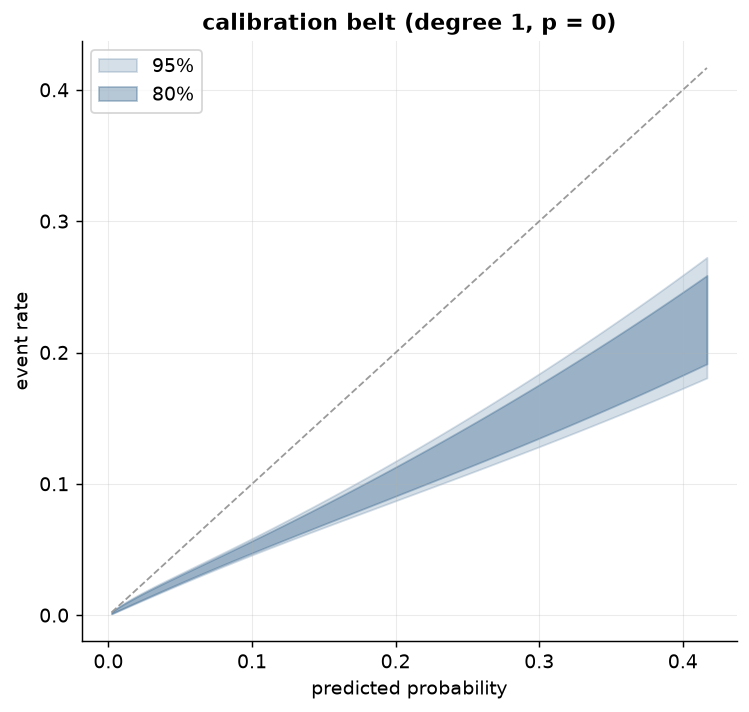

A smoothed reliability curve without uncertainty invites overinterpretation. The GiViTI calibration belt (Nattino, Finazzi and Bertolini, 2014) answers with a confidence region: fit a polynomial logistic recalibration of the outcome on \( \operatorname{logit}(p) \), selecting the polynomial degree by forward likelihood-ratio testing (capped at degree 4), then invert the likelihood-ratio acceptance region pointwise into a band around the fitted curve at the requested confidence levels (80% and 95% by default). Where the band excludes the diagonal, the data affirmatively reject calibration in that region: a localized, test-backed statement no eyeballed curve provides. The associated p-value summarizes the global test. The construction (Nattino et al., 2017, describe the practitioner-facing version) is reimplemented in probcal from the papers, on the numpy-only χ² machinery of probcal._math.

The ECCE drift walk

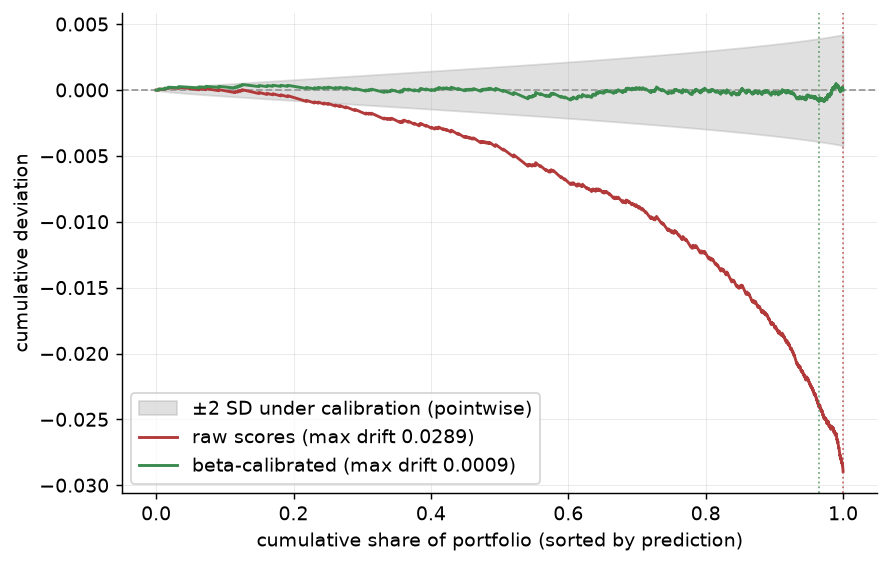

The ECCE sorts observations by prediction and accumulates the residuals; the resulting walk hovers near zero under calibration and drifts under systematic error, and where it drifts localizes the miscalibration along the score range without any binning or bandwidth choice. ecce_curve computes the walk (its stat_max agrees exactly with metrics.ecce) and plot_ecce renders one or several; raw versus calibrated is the natural pair. Each curve's maximum drift is quoted in the legend and marked by a dotted tick at the position where it occurs. The grey envelope is ±2 pointwise standard deviations of the walk under calibration: an honest reading aid, not a simultaneous confidence band. A walk can exit a pointwise envelope somewhere by chance more often than the nominal level suggests, and the formal max-statistic test of Arrieta-Ibarra et al. (2022) is not implemented in this release.

The per-grade backtest chart

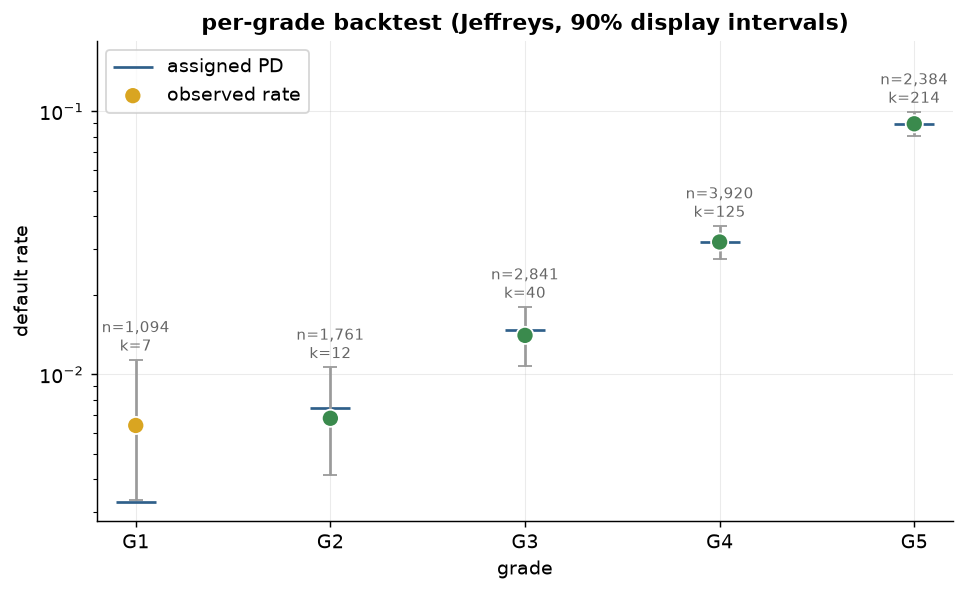

plot_grade_backtest turns a per-grade backtest result into the chart a validation committee reads: observed default rates as circles colored by the grade's traffic light, the assigned PDs as wide dashes underneath, and grey whiskers spanning each grade's 90% display interval, either the central Jeffreys posterior interval or the Clopper–Pearson interval, matching the test that produced the result. The intervals are display companions, not the test: the verdict is carried by the lights from the unchanged one-sided tests, which is why no p-values appear on the canvas. Per-grade n and k annotations keep the sample sizes honest, and the log-scale y-axis (the default) keeps a masterscale spanning two orders of magnitude readable.

The offset audit chart

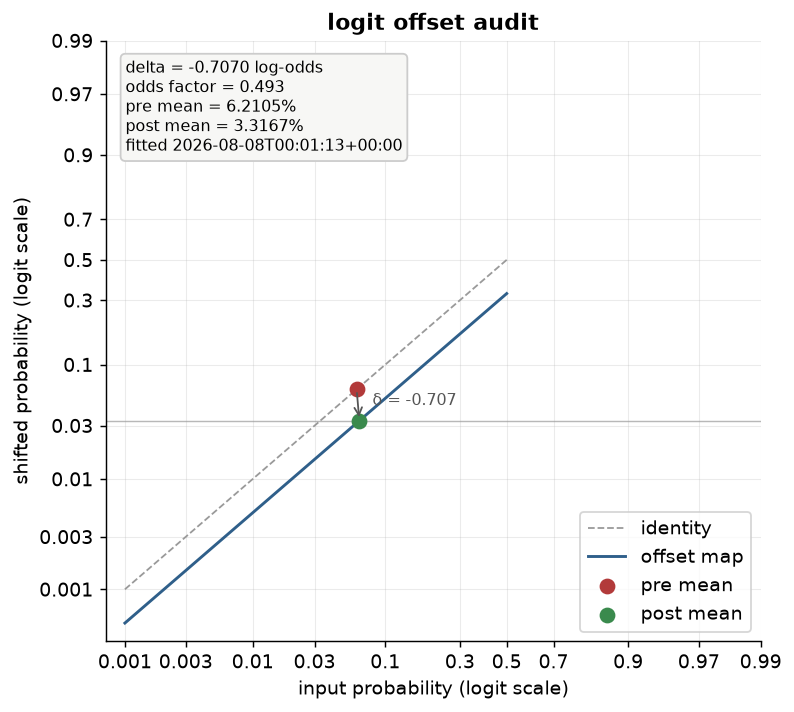

plot_offset_audit draws a fitted LogitOffset as what it is: a vertical translation on the logit scale. The blue offset map runs parallel to the grey identity at distance \( \delta \); the red and green markers place the pre- and post-adjustment central tendencies, joined by the annotated shift arrow, with the target mean as a thin reference line when the offset was fitted in target-mean mode. The stats box reads everything from the fitted attributes (\( \delta \) in log-odds, the odds factor \( e^{\delta} \), both means, and the fit timestamp), so the chart audits the stage itself; for the before/after guardrail comparison on outcomes, audit_report() remains the tool.

The attributes diagram

plot_attributes draws the classic Hsu and Murphy (1986) attributes diagram, which puts a reliability curve in the context of two references at once instead of just the identity. The horizontal and vertical lines at the weighted base rate \( \bar y \) mark climatology, the constant forecast \( p = \bar y \) that carries no resolution. The no-skill line \( y = (x + \bar y) / 2 \), equidistant between climatology and the identity at every \( x \), is the boundary the Brier skill score is measured against. The light green shading marks where a point beats climatology pointwise, \( (y - x)^2 \le (x - \bar y)^2 \): closer to the identity than to the no-resolution line. method="binned" overlays reliability_binned as markers scaled by bin count (n_bins=10 by default, the same default as the curve itself); method="corp" overlays the CORP PAV step fit instead, trading the binning choice for the same discretization-free construction used by plot_corp, whose reliability diagram, bands, and score decomposition are covered in CORP and score decomposition. scale="logit" transforms every drawn quantity (identity, references, shading, and curve alike) through the same clipped logit as the rest of the package, so a low-PD portfolio stays readable.

The Murphy diagram

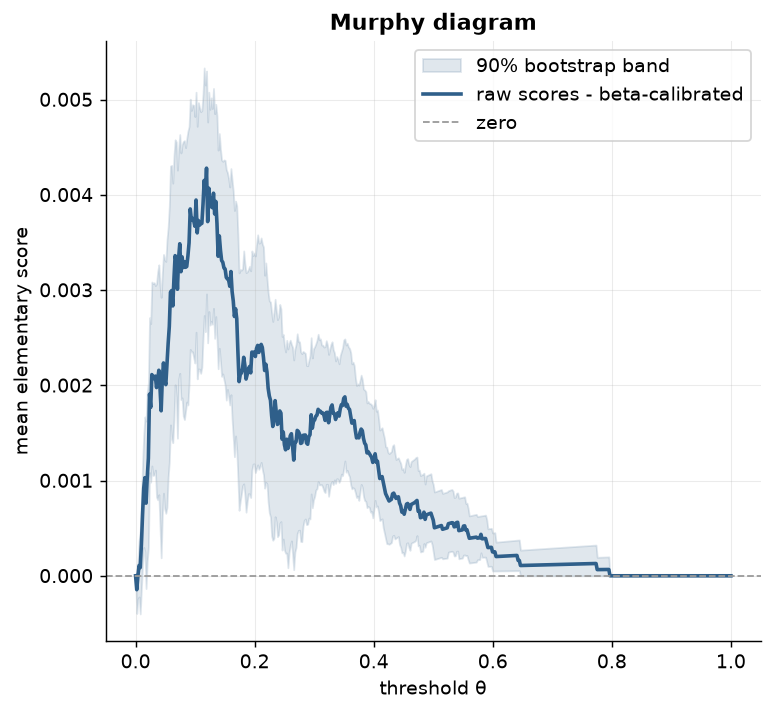

plot_murphy renders metrics.murphy_curve, the elementary-score view of the Brier score described in Metrics and tests, as either a set of labelled lines ({name: MurphyCurve}, or a single curve with no legend) or, with diff=True, the pointwise difference between exactly two named forecasts. The diff form needs the raw (y, p) pairs rather than precomputed curves, because a MurphyCurve retains only its threshold grid and scores, not the data: it recomputes both curves on a shared threshold grid, differences them, and adds a seeded paired bootstrap band (resampling the same indices for both forecasts, since the comparison is on the same observations) at the 5th/95th percentile, plus a zero reference line. Because the Murphy diagram decomposes the Brier difference across the whole decision spectrum instead of collapsing it to one number, a diff that crosses zero shows exactly which threshold range favors which forecast, information a single Brier-score comparison discards.

The remaining plots

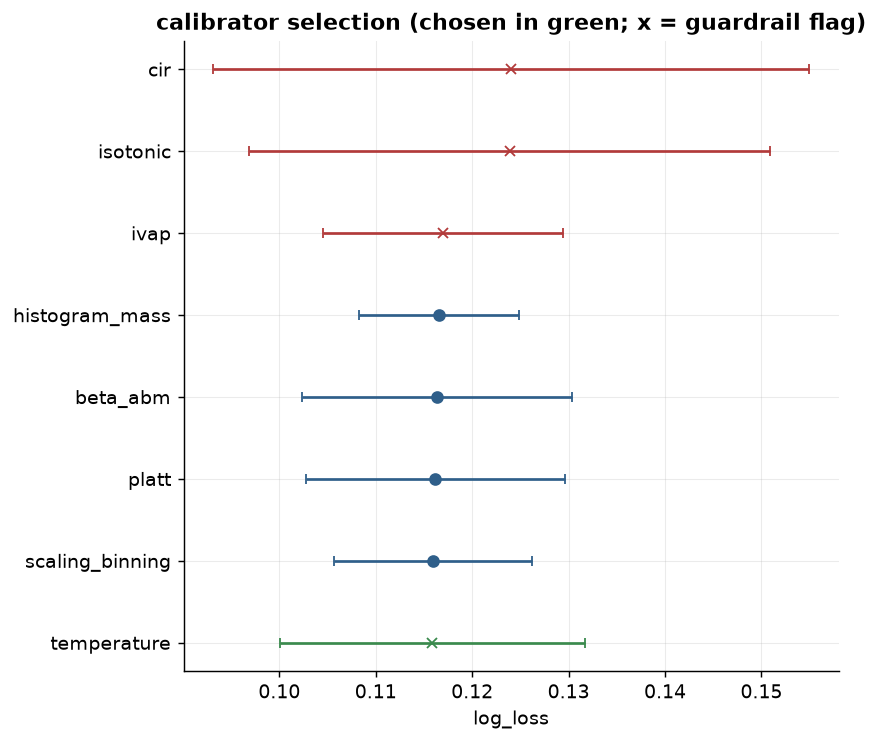

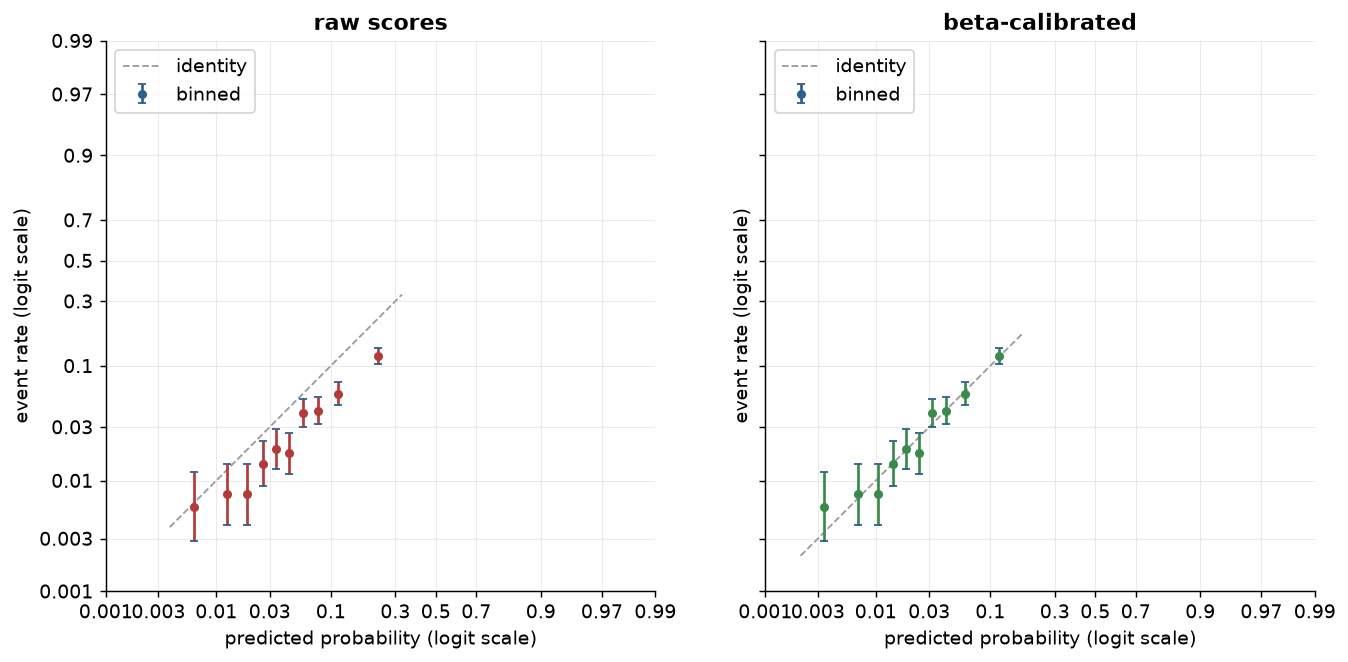

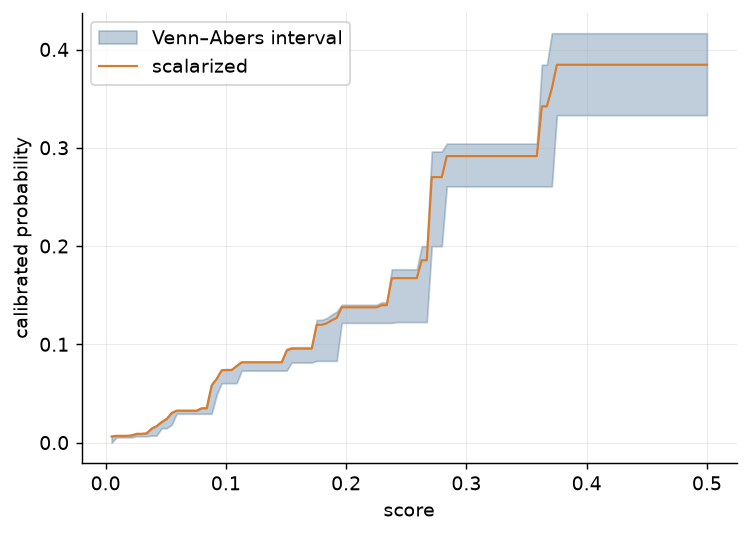

Three further views complete probcal.plots. plot_comparison(before, after) puts pre- and post-calibration (or pre- and post-offset) reliability on one axis pair, the picture a validation report leads with. plot_interval draws Venn–Abers interval widths against score, localizing where calibration uncertainty concentrates. plot_selection renders the SelectionReport as a ranked dot plot with fold-spread whiskers and guardrail markers: the table, made presentable. All of them accept the dataclasses from probcal.curves, and none of them is importable without the [viz] extra; the import guard raises with the install instruction rather than a bare ImportError.

In probcal

# grades: rating labels
# s_cal, y_cal: held-out calibration scores and outcomes
import numpy as np
from probcal import BetaCalibrator, LogitOffset, calibration_belt, reliability_binned, reliability_loess
from probcal.curves import ecce_curve, reliability_smooth
from probcal.metrics import jeffreys_grade_test, reliability_summary
from probcal.plots import (  # [viz] extra
    plot_belt, plot_comparison, plot_ecce, plot_grade_backtest,
    plot_offset_audit, plot_reliability,
)

s_raw, y = s_cal, y_cal                            # raw, miscalibrated scores
p = BetaCalibrator().fit(s_raw, y).predict_proba(s_raw)  # calibrated probabilities

curve = reliability_binned(y, p, n_bins=10)        # Wilson CIs, both scales
smooth = reliability_loess(y, p)
belt = calibration_belt(y, p)
print(belt.degree, belt.p_value)
print(reliability_summary(y, p))                   # the stats-box numbers, standalone

ax = plot_reliability(curve, smooth=smooth, scale="logit", y=y, p=p)   # the flagship view
kernel = reliability_smooth(y, p)                  # the smECE-consistent construction
ax = plot_reliability(
    curve, smooth=kernel, scale="logit", y=y, p=p,
    stats=True, risk_dist="split",                 # n/events/.../smECE/Brier box + spike histogram
)
ax = plot_belt(belt)
fig = plot_comparison(reliability_binned(y, s_raw), reliability_binned(y, p))
ax = plot_ecce([ecce_curve(y, s_raw), ecce_curve(y, p)], labels=["raw", "calibrated"])
ax = plot_grade_backtest(jeffreys_grade_test(y, p, grades))

fitted_offset = LogitOffset(target_mean=float(np.mean(y))).fit(p)
ax = plot_offset_audit(fitted_offset)              # a fitted LogitOffset stage

References

• Arrieta-Ibarra, I., Gujral, P., Tannen, J., Tygert, M., Xu, C. (2022). "Metrics of Calibration for Probabilistic Predictions." Journal of Machine Learning Research 23(351), 1–54.
• Austin, P. C., Steyerberg, E. W. (2014). "Graphical assessment of internal and external calibration of logistic regression models by using loess smoothers." Statistics in Medicine 33(3), 517–535.
• Hsu, W.-R., Murphy, A. H. (1986). "The attributes diagram: A geometrical framework for assessing the quality of probability forecasts." International Journal of Forecasting 2(3), 285–293.
• Nattino, G., Finazzi, S., Bertolini, G. (2014). "A new calibration test and a reappraisal of the calibration belt for the assessment of prediction models based on dichotomous outcomes." Statistics in Medicine 33(14), 2390–2407.
• Nattino, G., Lemeshow, S., Phillips, G., Finazzi, S., Bertolini, G. (2017). "Assessing the Calibration of Dichotomous Outcome Models with the Calibration Belt." Stata Journal 17(4), 1003–1014.
